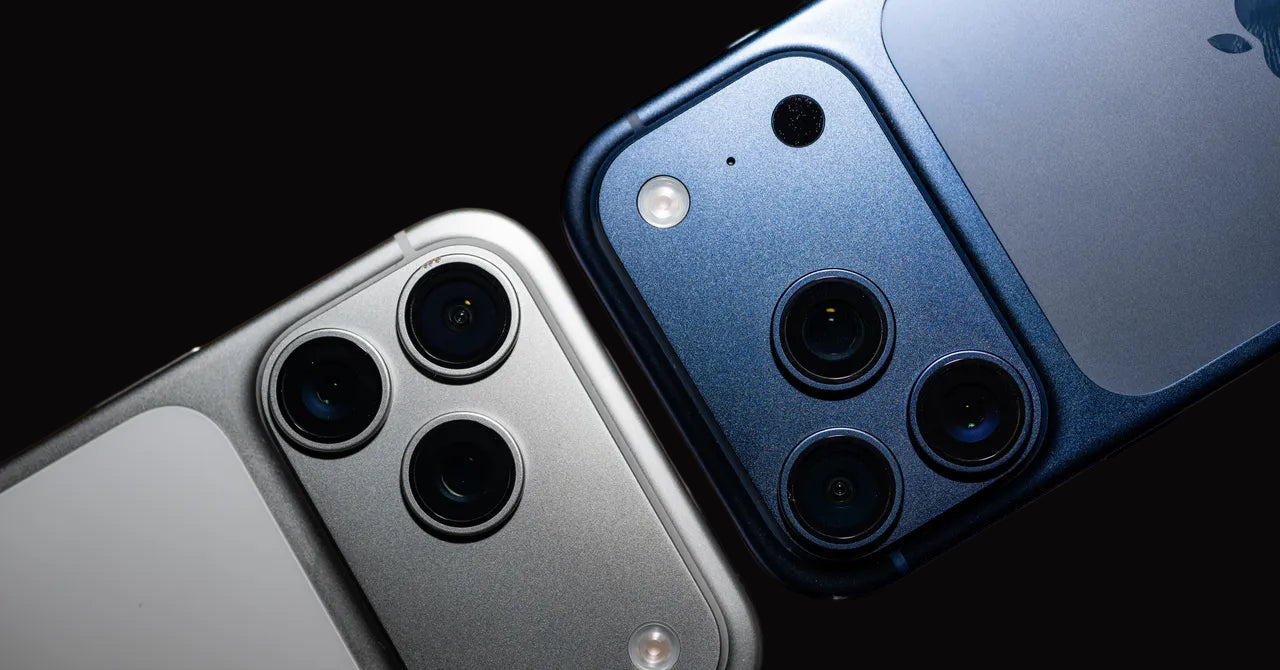

Apple iPhone 17 Pro Max-New

Silver, Cosmic Orange, Deep Blue

Aluminium unibody design
Ceramic Shield 2 front
Ceramic Shield back

256GB
512GB
1TB
2TB

Width:

Weight:

231 g (8.15 oz.)

Display

Super Retina XDR display
17.42 cm / 6.9″ (diagonal) all‑screen OLED display
2868x1320-pixel resolution at 460 ppi

The iPhone 17 Pro Max display has rounded corners that follow a beautiful curved design, and these corners are within a standard rectangle. When measured as a standard rectangular shape, the screen is 17.42 cm (6.86″) diagonally (actual viewable area is less).

Both models

Dynamic Island
Always-On display
ProMotion technology with adaptive refresh rates up to 120Hz
HDR display
True Tone
Wide colour (P3)
Haptic Touch
20,00,000:1 contrast ratio (typical)
1,000 nits max brightness (typical); 1,600 nits peak brightness (HDR); 3,000 nits peak brightness (outdoor); 1 nit minimum brightness
Fingerprint-resistant oleophobic coating
Anti-reflective coating
Support for display of multiple languages and characters simultaneously

Video Recording

4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion Main) or 120 fps (Fusion Main)
1080p Dolby Vision video recording at 25 fps, 30 fps, 60 fps or 120 fps (Fusion Main)
720p Dolby Vision video recording at 30 fps
Cinematic mode up to 4K Dolby Vision at 30 fps
Action mode up to 2.8K Dolby Vision at 60 fps
Spatial video recording at 1080p at 30 fps
ProRes video recording up to 4K at 120 fps with external recording
ProRes RAW
Academy Color Encoding System
Apple Log 2
Genlock support
Macro video recording, including slow motion and time lapse
Slow‑motion video support for 1080p up to 240 fps and 4K Dolby Vision up to 120 fps (Fusion Main)
Dual Capture up to 4K Dolby Vision at 30 fps
Time‑lapse video with stabilisation
Night mode Time‑lapse
QuickTake video up to 4K Dolby Vision at 60 fps
Second‑generation sensor‑shift optical image stabilisation for video (Fusion Main)
3D sensor‑shift optical image stabilisation and autofocus for video (Fusion Telephoto)
Digital zoom up to 15x
Audio zoom
True Tone flash
Cinematic video stabilisation (4K, 1080p and 720p)
Continuous autofocus video
Take 8MP still photos while recording 4K video
Playback zoom
Video formats recorded: HEVC, H.264, ProRes and ProRes RAW
Spatial Audio and stereo recording
Four studio-quality mics
Wind noise reduction
Audio Mix

Front Camera

18MP Center Stage camera
ƒ/1.9 aperture
Autofocus with Focus Pixels
Retina Flash
Tap to zoom and rotate
Centre Stage for photos
Ultra-stabilised video
Dual Capture
Centre Stage for video calls
Photonic Engine
Deep Fusion
Smart HDR 5
Next-generation portraits with Focus and Depth Control
Portrait Lighting with six effects
Animoji and Memoji
Night mode
Latest-generation Photographic Styles
ProRAW
Wide colour capture for photos and Live Photos
Lens correction
Auto image stabilisation
Burst mode
4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps or 60 fps
1080p Dolby Vision video recording at 25 fps, 30 fps or 60 fps
Cinematic mode up to 4K Dolby Vision at 30 fps
ProRes video recording up to 4K at 60 fps with external recording
ProRes RAW⁵
Academy Color Encoding System
Apple Log 2
Slow-motion video support for 1080p at 120 fps
Time‑lapse video with stabilisation
Night mode Time-lapse
QuickTake video up to 4K at 60 fps in Dolby Vision
Cinematic video stabilisation (4K, 1080p and 720p)
Spatial Audio and stereo recording
Wind noise reduction
Audio Mix

Video playback
Up to 37 hours

Video playback (streamed)
Up to 33 hours

Location

Precision dual-frequency GPS (GPS, GLONASS, Galileo, QZSS, BeiDou and NavIC)
Digital compass
Wi-Fi
Cellular
iBeacon micro-location

External Buttons and Connectors

Action button features

Silent mode, Focus, Camera, Visual Intelligence,Flashlight, Voice Memo, Recognise Music, Translate, Magnifier, Controls, Shortcut or Accessibility

Camera controls

Exposure, Depth, Zoom, Cameras, Styles, Tone

Charging and Expansion

USB-C connector with support for:
Charging
DisplayPort
USB 3 (up to 10 Gbps)

Sensors

Face ID
LiDAR Scanner
Barometer
High dynamic range gyro
High-g accelerometer
Proximity sensor
Dual ambient light sensors

SIM Card

Dual SIM (nano-SIM and eSIM)
Dual eSIM support

Video Calling

FaceTime video calling over cellular or Wi‑Fi
FaceTime HD (1080p) video calling over 5G or Wi‑Fi
Centre Stage
Share experiences like movies, TV, music and other apps in a FaceTime call with SharePlay
Screen sharing
Portrait mode in FaceTime video
Spatial Audio
Voice Isolation and Wide Spectrum microphone modes
Optical zoom with rear‑facing camera

Audio Calling

FaceTime audio
Voice over LTE (VoLTE)
Wi‑Fi calling
Share experiences like movies, TV, music and other apps in a FaceTime call with SharePlay
Screen sharing
Spatial Audio
Voice Isolation and Wide Spectrum microphone modes

Audio Playback

Supported formats include AAC, APAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus and Dolby Atmos
Spatial Audio playback
User‑configurable maximum volume limit

Video Playback

Supported formats include HEVC, H.264, AV1 and ProRes
HDR with Dolby Vision, HDR10+/HDR10 and HLG
Up to 4K HDR AirPlay for mirroring, photos and video out to Apple TV (2nd generation or later) or AirPlay‑enabled smart TV
Video mirroring and video out support: Up to 4K HDR through native DisplayPort output over USB-C or USB-C Digital AV Adapter (model A2119; adapter sold separately)

Operating System
